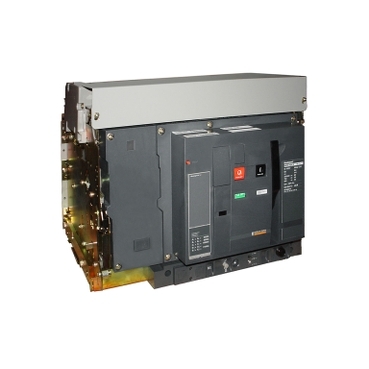

Masterpact NT and NW - UL/ANSI
LV power circuit breakers from 800 A to 6000 A
Part of PacT Series
Masterpact NT/NW offers a comprehensive range of circuit breakers designed and tested for applications in accordance to ANSI C37/UL1066 or UL 489 standards.

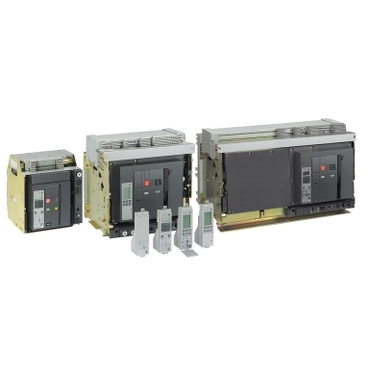

MasterPact MTZ Circuit Breakers - UL/ANSI
LV power circuit breakers from 800 A to 6000 A
Part of PacT Series
MasterPact MTZ offers a complete range with 1 family, 3 frame sizes and multiple ratings designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults.
MasterPact DC Circuit Breaker
For use on ungrounded systems rated 500 Vdc
Part of PacT Series
Insulated case circuit breakers designed for dc voltage systems

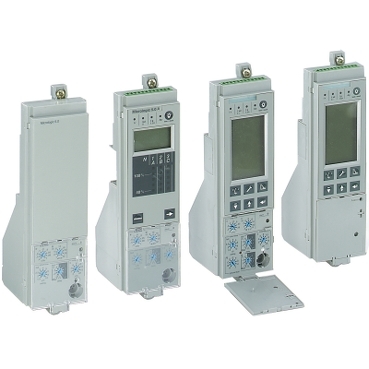

Micrologic Trip Units
Micrologic electronic trip units are designed for use in both PowerPact and Masterpact circuit breakers
Part of PacT Series
All Micrologic trip units provide impeccable, electronic circuit protection with adjustable protection settings for maximum system coordination and flexibility. Sophisticated functionality, such as energy and power quality metering capabilities, is integrated in the more advanced trip units.
Mission Critical Molded Case Circuit Breakers
High levels of selective coordination from 70 through 600 A
High performance circuit protection and selective coordination.

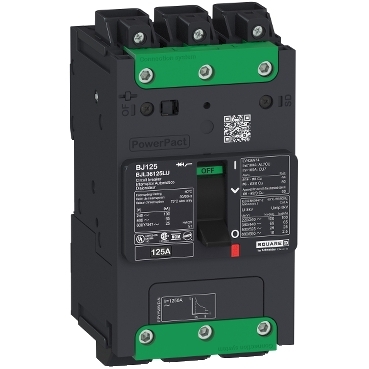

PowerPact B-Frame Molded Case Circuit Breakers
A flexible, high-performance circuit breaker, certified to global standards from 15 to 125 A
Part of PacT Series
PowerPact B circuit breakers – efficiency that clicks. Also available in I-line construction.

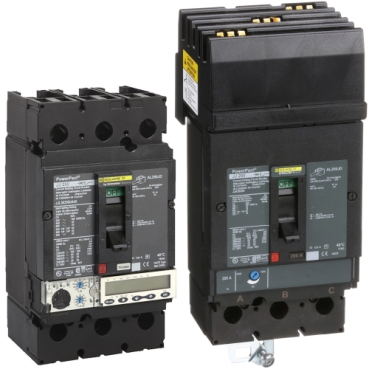

PowerPact H-Frame Molded Case Circuit Breakers
A flexible, high-performance offer, certified to global standards for ratings from 15 to 150A
Part of PacT Series
The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Also available in I-line construction.
PowerPact J-Frame Molded Case Circuit Breakers
A flexible, high-performance offer, certified to global standards for ratings from 70 to 250 A
Part of PacT Series
The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Also available in I-line construction.

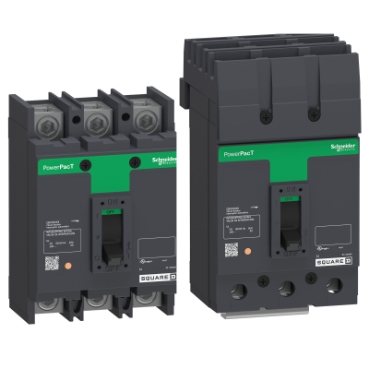

PowerPact Q-Frame Molded Case Circuit Breakers
Basic thermal magnetic protection from 75 to 250 A
Part of PacT Series
PowerPact Q-Frame circuit breakers are used for overcurrent protection and switching on ac systems, with thermal magnetic protection for ratings from 75 to 250A. Also available in I-line construction.

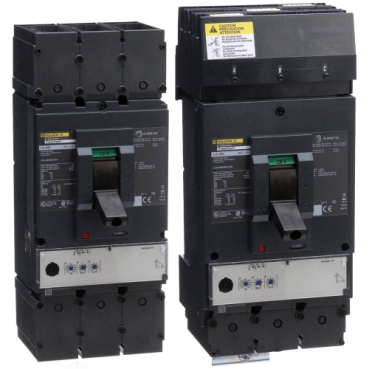

PowerPact L-Frame Molded Case Circuit Breakers
A flexible, high-performance offer, certified to global standards for ratings from 70 to 600 A
Part of PacT Series
The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Also available in I-line construction.
PowerPact M-Frame Molded Case Circuit Breakers
A flexible, high-performance offer, certified to global standards from 300 to 800 A
Part of PacT Series
The PowerPact M-Frame, P-Frame, and R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Also available in I-line construction.

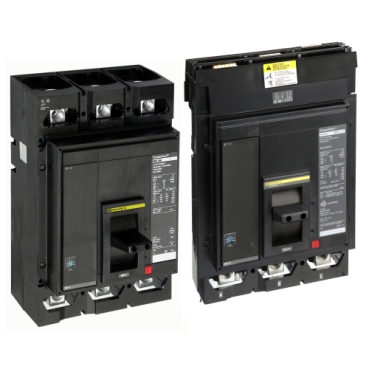

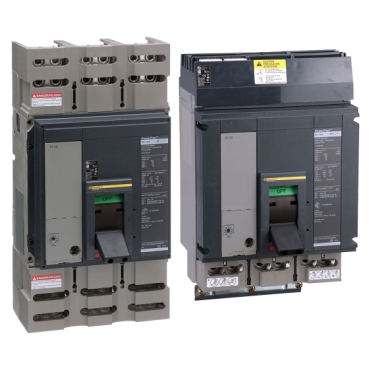

PowerPact P-Frame Molded Case Circuit Breakers
A flexible, high-performance offer, certified to global standards from 100 to 1200 A
Part of PacT Series
The PowerPact M-frame, P-frame, and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. These breakers are available with Micrologic electronic trip units. Also available in I-line construction.

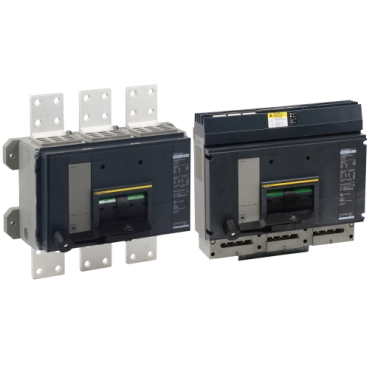

PowerPact R-Frame Molded Case Circuit Breakers
A flexible, high-performance offer, certified to global standards from 240 to 3000 A
Part of PacT Series
The PowerPact M-Frame, P-Frame, and R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. These breakers are available with Micrologic electronic trip units. Also available in I-line construction.
LA, LH, Q4 Molded Case Circuit Breakers
Basic thermal magnetic protection from 125 to 400A as part of the Square D portfolio of molded case circuit breakers.
Basic thermal magnetic protection.

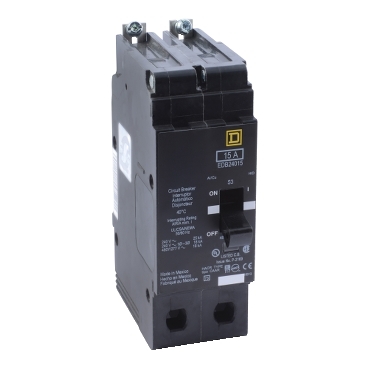

E-Frame Circuit Breakers
Square D™ NF lighting panelboard circuit breakers
Lighting panelboard circuit breakers from Square D™ by Schneider Electric™ provide a wide variety of robust features for use in Square D NF panelboards. With current ratings from 15 to 125 Amps, and included VISI-TRIP feature, these circuit breakers are proven effective and reliable.

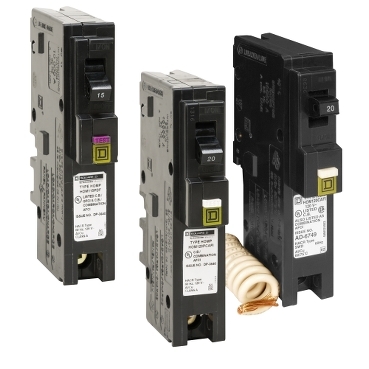

Square D™ Homeline™ Miniature Circuit Breakers
Homeline miniature circuit breakers for Homeline load centers
Part of Square D Homeline
Engineered for value, Homeline™ Circuit Breakers are designed for fast installation, reliability, and superior circuit protection. With industry leading innovations and exclusive features, Square D Homeline Circuit Breakers are the smart, safe, reliable choice.
Square D™ QO™ and QOB Miniature Circuit Breakers
QO and QOB miniature circuit breakers for QO systems
Part of Square D QO
QO and QOB circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO distribution panels. QO is the “World’s Finest” Industry leading offer since 1955, with features engineered for faster installation, reliability and quality.

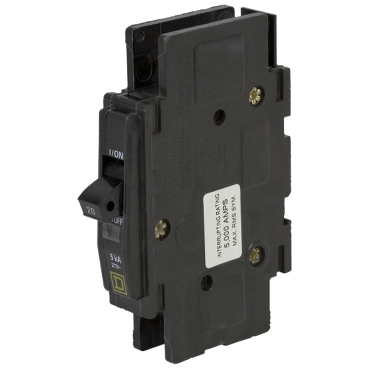

QOU Unit Mount Circuit Breakers
For overcurrent protection and switching on both AC and DC systems
Part of Square D QO
The perfect choice for OEMs thanks to high performances and multiple mounting options
Low Ampere QYU Unit Mount Miniature Supplementary Protectors
Available for surface, flush, or DIN mounting.
QYU 277 Vac supplementary protectors are available for surface, flush or DIN-rail mounting in 1-pole construction.

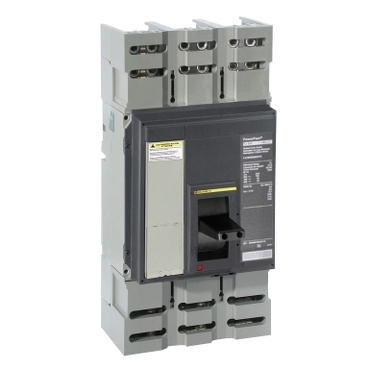

PowerPact P-Frame Electronic Motor Circuit Protectors
A flexible, high-performance offer, certified to global standards ranging from 600 to 1200 A
Part of PacT Series
Motor protection circuit breakers provide built-in thermal and magnetic protection. They are used in two-device motor feeder solutions to provide protection against short-circuits, overloads, and phase unbalance. Also available in I-line construction.

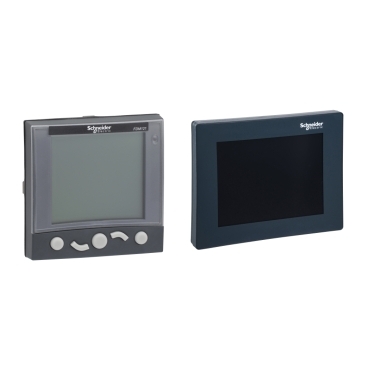

FDM128
Touch screen monitor to view and control
Part of EcoStruxure
The FDM128 display for 8 LV devices is a 1-to-8 human machine interface (HMI). The main component is a 5.7 inch touch screen. The FDM128 display unit can be set up in one or any combination of IFE gateway, Acti9 Smartlink Ethernet, or PowerLogic EGX300 Ethernet gateway. The display unit can monitor and control up to 8 LV devices. The information displayed includes measurements, alarms, and operating assistance data.
Enerlin’X IFE, EIFE, IFM
Interface and gateway for Ethernet and Modbus-SL communication
Part of EcoStruxure
Enerlin’X IFE, EIFE, IFM interfaces enables Masterpact, PowerPact, and Compact circuit breakers to be connected to an Ethernet or Modbus-SL network

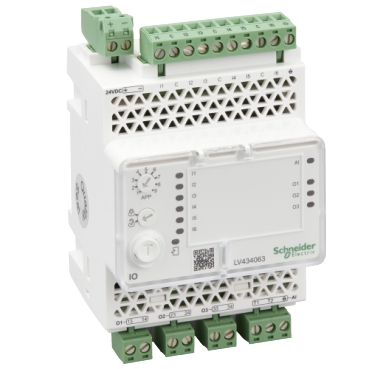

I/O Module
Eases circuit breaker status monitoring
Part of EcoStruxure
The IO input/output interface module for LV circuit breakers is part of the ULP system with built-in functionalities. It can be used for various predefined and user defined applications with Masterpact™ and Powerpact™ circuit breakers.

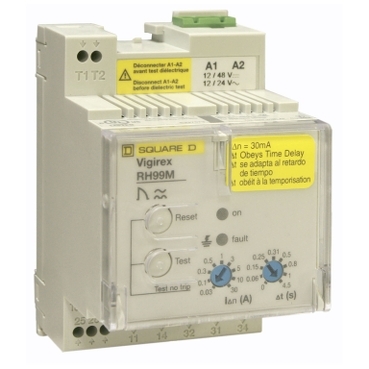

Vigirex Ground-fault Relay System
Ground fault protection or monitoring from 30mA to 30A
Part of PacT Series
Used at all levels of an installation: power distribution, industrial control and final distribution, as well as with a variety of OEM equipment.

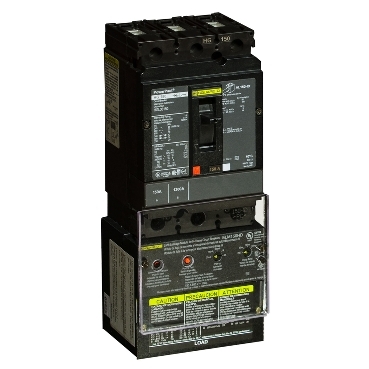

PowerPact Earth Leakage Modules
Ground fault protection from 30mA to 3A
For PowerPact H- and J-Frame circuit breakers to provide equipment ground fault protection from 30mA to 3A with adjustable time delays for flexibility

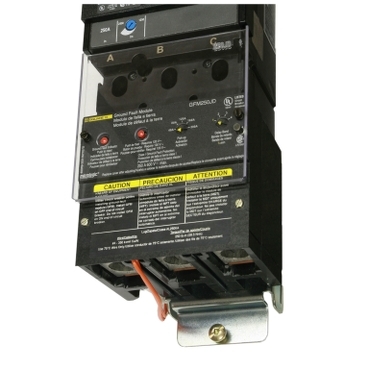

Micrologic Add-on Ground-fault Modules
For PowerPact H- and J-Frame circuit breakers
Part of PacT Series
For PowerPact H- and J-Frame circuit breakers to provide equipment ground fault protection from 20A to 200A with adjustable time delays for flexibility

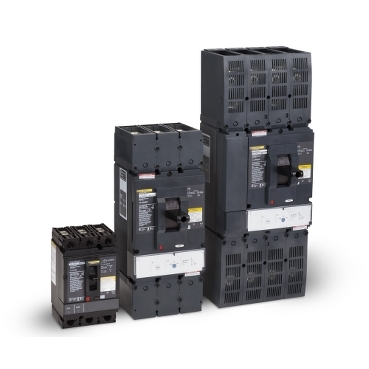

PowerPact 500VDC Thermal-Magnetic Circuit Breakers
A flexible, high-performance offer for DC circuits from 30 to 1200 A
Part of PacT Series
Systems that use batteries as a power source, such as an uninterruptible power supply (UPS), require special consideration when specifying overload protection. PowerPact 500 Vdc molded case circuit breakers are designed per UL Supplement SC for use in an ungrounded dc system using an uninterruptible power supply (UPS), with a nominal voltage of 500 Vdc or a maximum (floating) voltage of 600 Vdc.

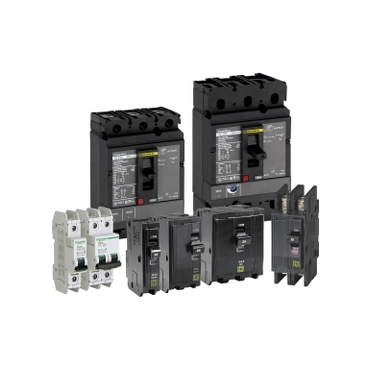

Dual Rated AC/DC Circuit Breakers
Dual Rated AC/DC Circuit Breakers
Circuit breakers that have both dc ratings and ac ratings for application on either system
Low Ampere QYU Unit Mount Miniature Supplementary Protectors
Available for surface, flush, or DIN mounting.
QYU 277 Vac supplementary protectors are available for surface, flush or DIN-rail mounting in 1-pole construction.

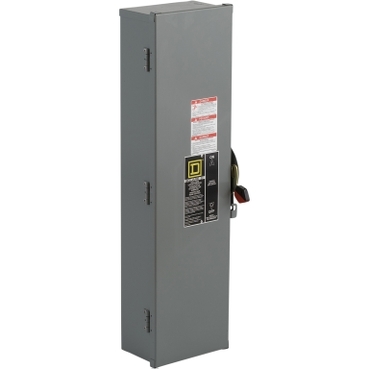

Industrial and Residential Circuit Breaker Enclosures
Designed to be tough, reliable and provide exceptional performance in the most grueling conditions.
Provides a dead front housing for circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. Protect breaker from physical damage. Allow breaker operation without removing cover
