Here are the latest product of Schneider Electric:

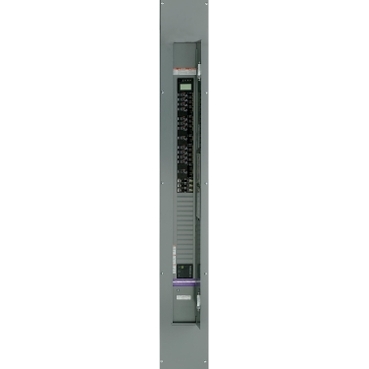

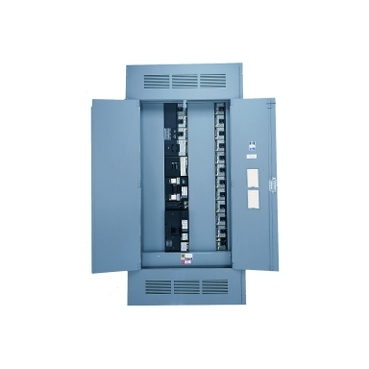

Column Width Panelboards
Panelboards that mount in W, H, or I-beam support columns
Designed to fit into a standard size support column in industrial plants, NF & NQ column-width panelboards conserve wall space and protect the panels.
NF Panelboards
Lighting and Appliance circuit protection up to 125A at 480Y/277 Vac
With bus capacities from 125-800A, NF panelboards offer a wide variety of field installable circuit breakers and accessories, including 200% neutrals.
NQ Panelboards
240 Vac maximum Lighting and Appliance circuit protection
With 100-600A bus capacities, and optional fingersafe IP2X construction, NQ panelboards offer compact, flexible protection for 10-200 A, 240 Vac maximum circuits.

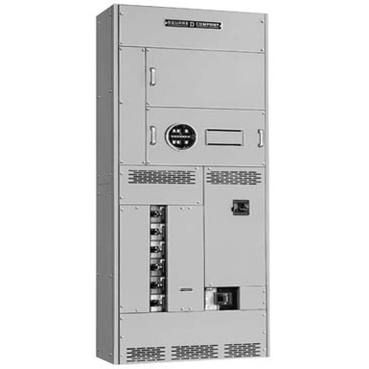

Speed-D Merchandised Service Section LV Switchboards
Short lead times. Meets EUSERC requirements.
Designed for the EUSERC market, these switchboards offer a compact footprint, short lead time, and cost-effective solution for service entrance applications rated 400-800A. Available in standard or solar-ready configurations.
Column Width Panelboards
Panelboards that mount in W, H, or I-beam support columns
Designed to fit into a standard size support column in industrial plants, NF & NQ column-width panelboards conserve wall space and protect the panels.
Power-Zone 4 Arc Resistant
Low voltage metal-enclosed, drawout switchgear designed to contain the effects of arc flash events inside the gear per ANSI/IEEE standard C37.20.7.
Part of SeT Series
This arc resistant solution features the proven reliability and durability of Masterpact NW power circuit breakers with a unique combination of arc flash mitigation features and upgraded arc flash containment, providing superior protection from the consequences of internal arcing faults.

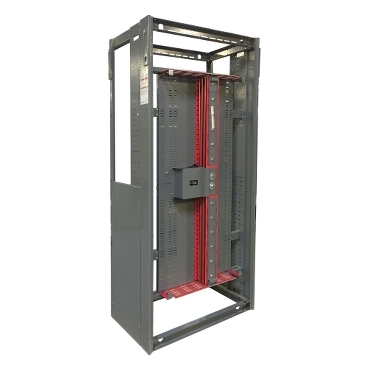

Square D OEM QED-2 I-Line Switchboard Components
Single row and double row I-Line interior products
Engineered to help you create high quality, custom switchboard layouts to meet your customers’ unique business needs.
Power-Zone 4 Front Accessible
Low Voltage Drawout Switchgear in 42-inch deep sections
Greater footprint flexibility with reliable ANSI-rated power distribution.

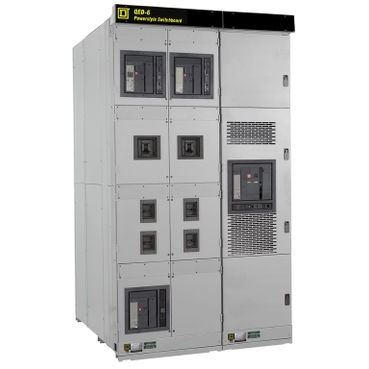

QED 6 Switchboards
For critical power distribution where it matters most
Square D QED-6 Power-Style Rear Connected Electrical Switchboard is ideal for critical power distribution found in hospitals, universities, data processing centers and telecommunications facilities.

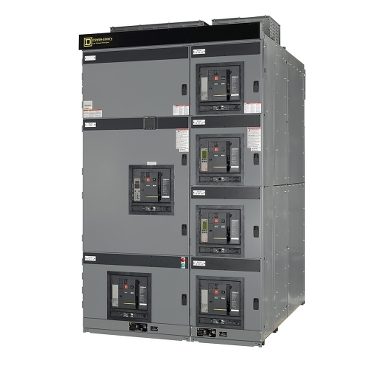

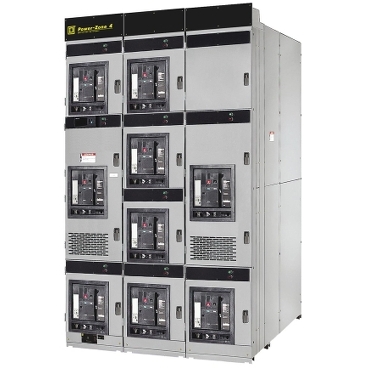

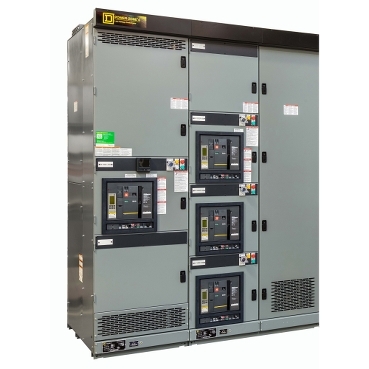

Power-Zone 4
Low Voltage Drawout Switchgear with Masterpact Circuit Breakers
Part of SeT Series
ANSI rated to provide superior electrical distribution, protection, and power management in a space-efficient footprint. Masterpact NT/NW drawout power circuit breakers, deliver maximum up time, system selectivity, ease of maintenance, and reliable circuit protection.
Square D QED-2 LV Switchboards
Select a standard design that features popular options or a create a custom option switchboard
QED-2 switchboards contain the quality, features, and innovations that allow for easier installation.

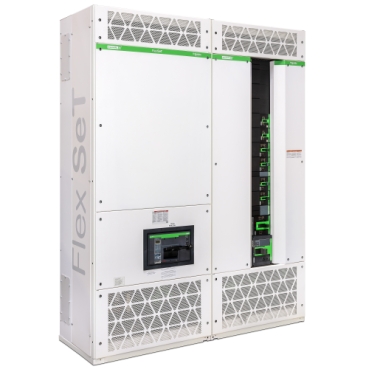

FlexSeT
The new generation of low-voltage switchboards
Accelerate time to market and reduce lead times for your customers with FlexSeT – a simplified, modular service model for switchboard design, sourcing, installation, and maintenance. UL listed, with ratings up to 2000A

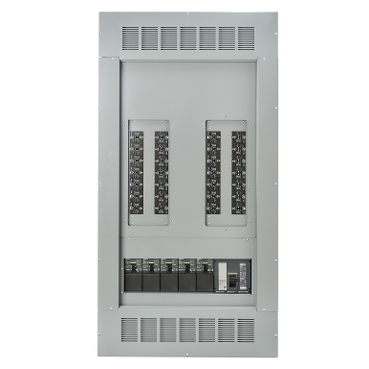

I-Line Combo Panelboard
Combines I-Line and lighting sections in one panelboard.
Part of Line Series
The I-Line™ Combo Panelboard saves time and space by combining I-Line and NQ/NF sections in one panelboard. The I-Line Combo Panelboard features a space-saving design for fast installation and a smaller footprint

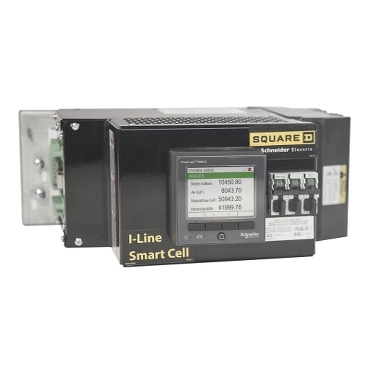

Square D I-Line Smart Cell
Space-saving module for value-added digital solutions
Part of Line Series
The modular Square D™ I-Line™ Smart Cell enables value-added devices in I-Line panelboards in a variety of combinations. The space-saving unit fits into the I-Line bus in place of a breaker, and allows the I-Line panelboard to be transformed into a digital communication or metered electrical distribution solution.
I-Line Power Distribution Panelboards
Ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility.
Part of Line Series
The I-Line™ power distribution panelboard features Schneider Electric's unique circuit breaker engagement system and is used to feed NQ and NF lighting and appliance panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment.

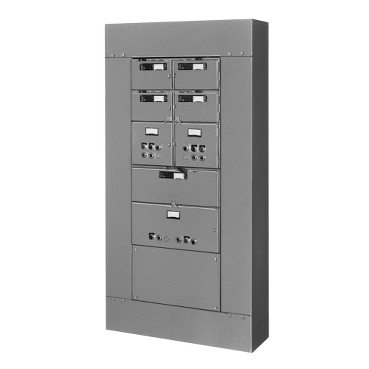

QMB Fusible Power Distribution Panelboards
QMB Fusible Power Panelboards
Square D® brand QMB fusible power distribution panelboards are for use on AC or DC systems. They are UL® Listed under File E6294 and File E33139 and marked cULus.

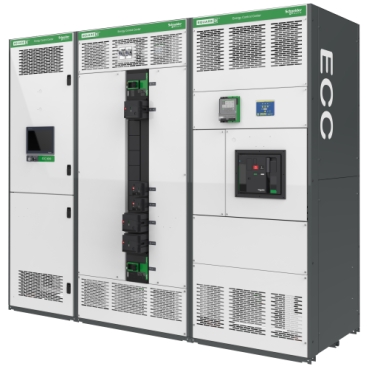

Energy Control Center
Energy Control Center (ECC)
Combines electrical distribution equipment and industrial controls into an intelligent Power Management System (PMS) that is pre-wired, assembled and factory tested to deliver autonomous microgrid solutions managing multiple energy sources and prioritized loads.
Line Isolation Monitor (LIM)
Iso-Gard Series 6
Square D / Schneider Electric Iso-Gard Series 6, in full compliance of NFPA 99 requirements, for testing and monitoring of the Isolation Power Panels.

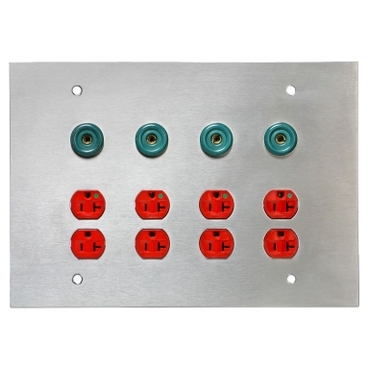

Power and Ground Modules and Other Accessories
Accessories support the entire Isolated Power System
Accessories help to support the entire Isolated Power System – power modules, ground modules, ground cords, nurse stations, and clock options.

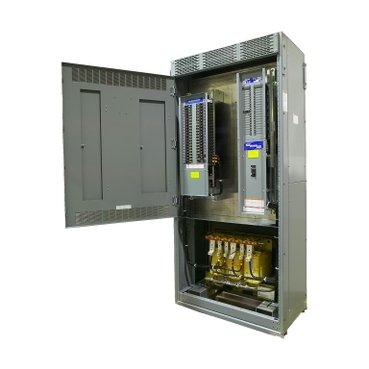

Isolated Power Panels
Isolation Power Panel, incorporates the Square D products into the UL Listed NFPA 99 power system.
Isolation Power System - small local network comprising an isolation transformer, a line isolation monitor, and its branch circuits.

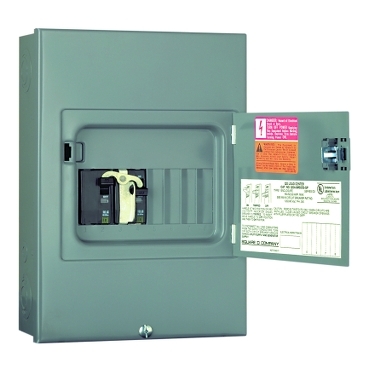

Standby Power Connection Solutions
Stay up and running even when the power is down.
Reliable power connection solution to quickly and safely connect to a portable generator for standby power.
Integrated Power Center 2
Free-standing front and rear aligned integrated equipment that reduces footprint and lowers on-site installation costs.
The newest addition to the family of Integrated Equipment products, the Integrated Power Center 2 (IPC2™) provides maximum flexibility to meet customers' specifications. Features include those found in the IPC and are provided in a free-standing enclosure that can be front and rear aligned when transformers are included. The IPC2 family is available as seismically-qualified.
Integrated Power Center (IPC)
Combines electrical distribution equipment and building management controls into a single factory-assembled and pre-wired integrated system
For more complex applications, the Integrated Power Center (IPC) allows for the integration of a variety of components, including electrical distribution equipment, HVAC controls, lighting controls, power quality and power conditioning products, SPDs, building management systems and power metering/monitoring solutions. As with all Power Solutions Integrated Equipment products, the IPC is designed to meet applicable codes and standards and is available as seismically qualified.
Dispenser Manager
Combines several conventionally installed fueling controls into a single, integrated, space saving system.
Solve fueling controls problems with a single, integrated solution

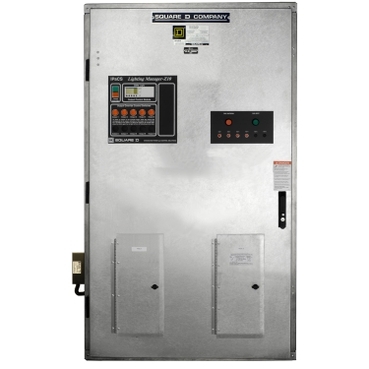

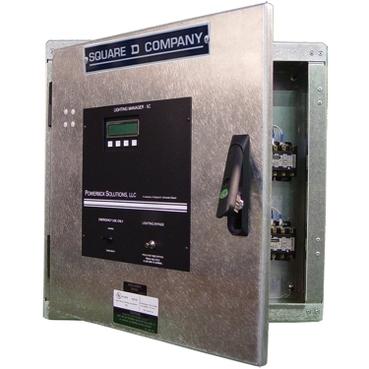

Lighting Manager
Automatic lighting controls in a single, integrated, space-saving solution
Easily control lighting for energy and cost savings

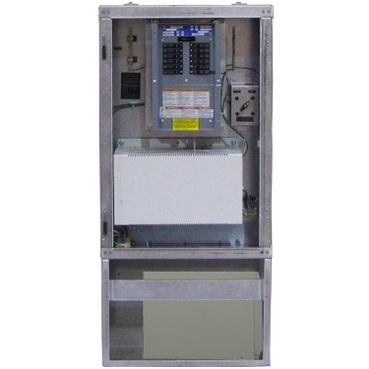

On-Site Manager
Circuit breaker panelboard and fueling and lighting controls integrated into a single enclosure.
Make the most of limited space with this integrated controls solution
Power Manager
Protect electronic equipment with clean, conditioned power
The Power Manager minimizes damaging voltage spikes and power ripples and provides clean, conditioned power to your electronic loads. Avoid issues such as computer lock-ups, lost data, equipment damage, and downtime.
